| الأسعار: | CN¥1,506,416.38/sets 1-1 sets |
|---|---|
| Packaging Details: | Sea worthy packing |
| Supply Ability: | 200 Set/Sets per Year Stainless Steel Tube Mill Line |

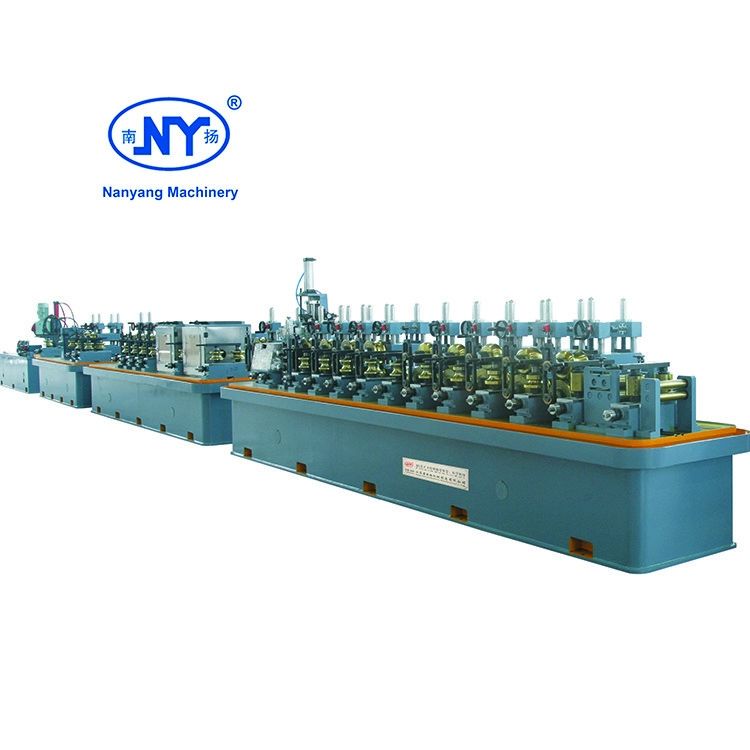

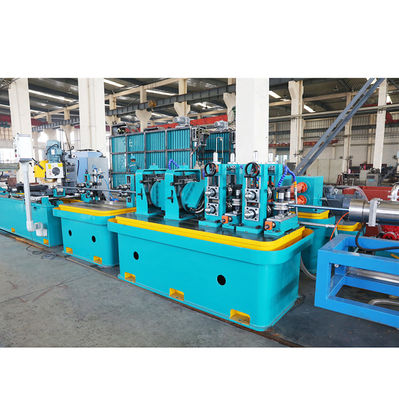

| place of origin: | Jiangsu, China | machine type: | Tube Mill Line |
|---|---|---|---|
| video outgoing-inspection: | Provided | machinery test report: | Provided |
| core components: | PLC, Bearing, Gearbox, motor | brand name: | Nanyang |
| warranty: | 1 Year | key selling points: | Long Service Life |
| weight (kg): | 9500 | Diameter of welded tube: | 16-50.8mm |
| Wall Thickness of welded tube: | 0.6-3.0mm | Milling speed: | 0.4-5M/Min |
| Main motor power: | 15KW*3 | Annual output: | 700t |
| Pipe shape: | Round Square Rectangle Pipe | Welding type: | High Frequency Welded |
| Marketing Type: | Ordinary Product | Warranty of core components: | 1 Year |
| Condition: | New | Showroom Location: | Viet Nam |
| Applicable Industries: | Energy & Mining, Construction works , Building Material Shops, Manufacturing Plant | Port: | shanghai |
نموذج | قطر الأنبوب الملحوم | سمك جدار الأنبوب الملحوم | سرعة اللحام | قوة المحرك الرئيسي | طاقة التردد العالي |
ZG16 | Φ8～Φ25mm | δ0.25～1.0mm | 30～120M/min | 37KW | 100KW |
ZG25 | Φ8～Φ32mm | δ0.3～1.3mm | 40～120M/min | 45KW | 100KW |
ZG32 | Φ13～Φ40mm | δ0.4～2.0mm | 30～110M/min | 110KW | 150KW |
ZG45 | Φ16～Φ50.8mm | δ0.5～2.5mm | 30～110M/min | 132KW | 200KW |
ZG50 | Φ19～Φ63.5mm | δ0.6～3.0mm | 30～100M/min | 160KW | 200KW |
ZG60 | Φ19～Φ63.5mm | δ0.7～3.5mm | 30～100M/min | 200KW | 250KW |
ZG76 | Φ25～Φ90mm | δ0.9～4.0mm | 20～80M/min | 200KW | 300KW |
ZG90 | Φ38～Φ127mm | δ1.2～4.5mm | 20～70M/min | 132KW×2 | 400KW |
ZG115 | Φ48～Φ127mm | δ1.4～5.0mm | 20～60M/min | 160KW×2 | 400KW |
ZG165 | Φ50.8～Φ165mm | δ1.8～6.0mm | 15～50M/min | 200KW×2 | 500KW |
ZG219 | Φ89～Φ219mm | δ2.0～8.0mm | 12～40M/min | 250KW×2 | 600KW |
ZG273 | Φ114～Φ273mm | δ2.5 ～10.0mm | 10～30M/min | 132KW×2, 160KW×2 | 800KW |
ZG325 | Φ168～Φ325mm | δ3.0 ～12.0mm | 10～30M/min | 160KW×2, 200KW×2 | 1000KW |
ZG530 | Φ219～Φ530mm | δ4.0 ～16.0mm | 10～30M/min | 75KW×5, 160KW×8 | 1500KW |
